Multi Axis Horizontal Wrapper FP 200

Multi Axis Horizontal Wrapper FP 200


Electronic continuous box motion Horizontal Wrapping Machine. Specific machine for modified atmosphere packaging thanks to the tight packs granted by thissealing system.

It is the most suitable flow-wrapper when: aesthetically good-looking packages with high quality side gussets and thick wrapping materials are required.

Its cantilevered frame and easy access for cleaning and maintenance, keep the vast margin of the highest hygienical standards and industrial production aspects.

    up to 70 ppm
    Product size
  • Width: max 350 mm
  • Height: max 180 mm
    Reel size
  • Standard web: 520mm (up to 920mm as option)
  • Outside Ø: max 350 mm
  • Inside Ø: 70 ÷ 76 mm
    Packaging materials
  • Heat-sealable
    Machine weight (net)
  • 1300 Kg abt.
    Machine size
  • Lenght: 5400 mm (1500 mm loading area)
  • Width: 1320 mm
  • Height: 1750 mm

  • Automatic splicer
  • Photocell for printing registration
  • Modified atmosphere
  • Coder
  • Powered feed roll
  • Gusseting devices
  • Pack deflating devices
  • No product / no bag
  • Out of position
  • no cut
  • Stop of jaws closing for out of phase product
  • Motorized closing jaws
  • Easy opening package;
  • Outfeed packs control
  • Outfeed conveyor extension
  • Stainless steel version

  • Motion control with integrated PLC

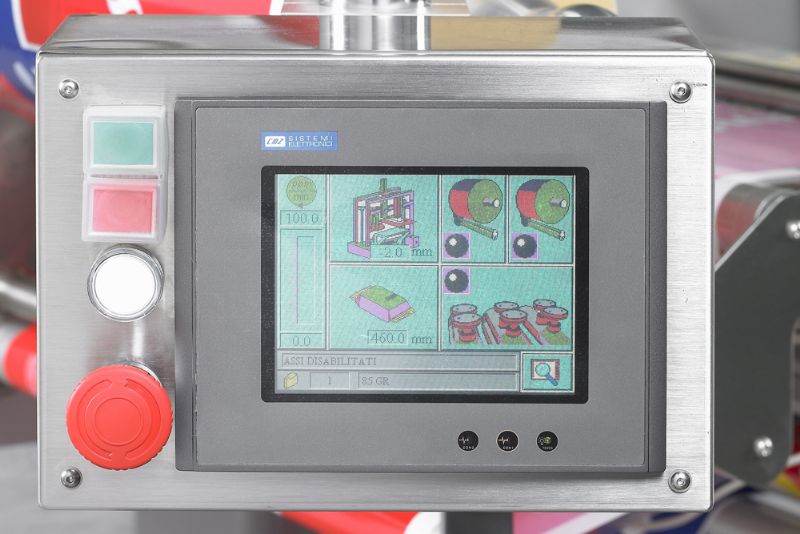

  • "Touch-screen" operator interface to vary machine parameters
  • Working programmes memorization
  • Machine diagnostic
  • Power: 6 Kw

    Compressed air: 6 bar dry and filtered air
    Compressed air consumption
  • 10 NL/cycle
