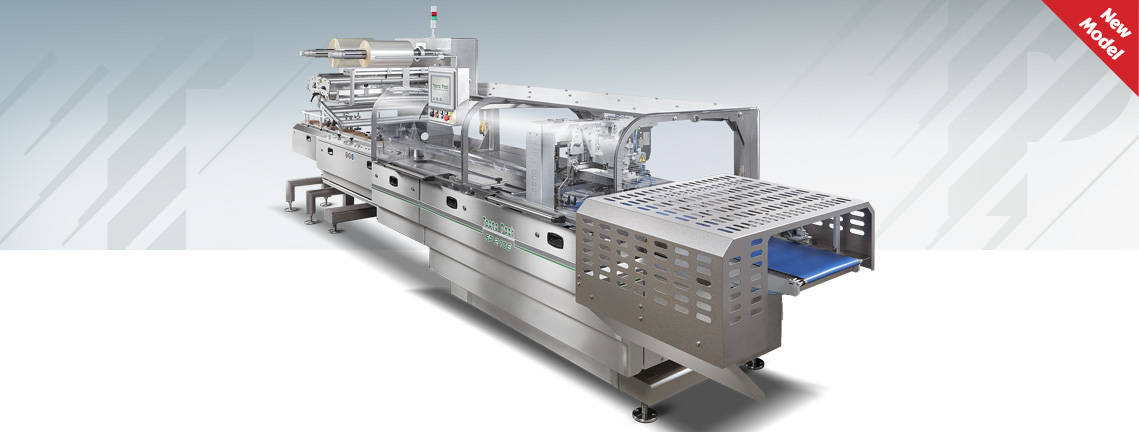

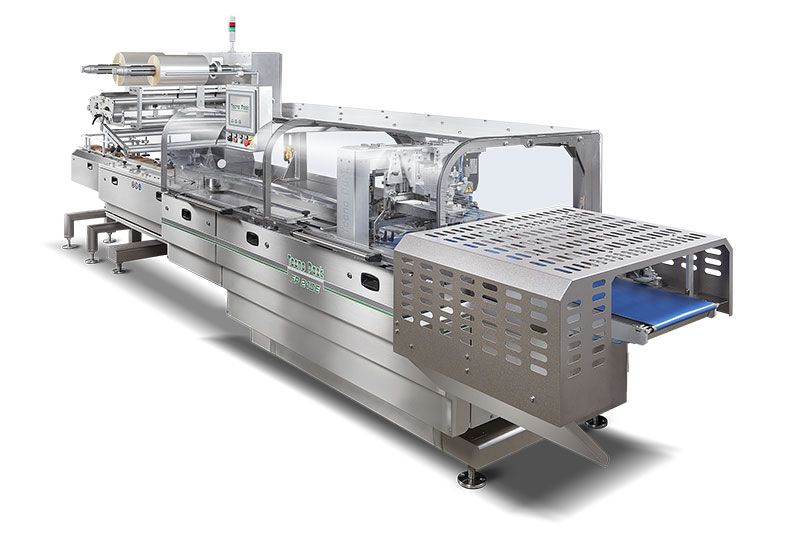

Multi Axis Horizontal Wrapper FP 210 E

Multi Axis Horizontal Wrapper FP 210 E

Description

Electronic machine designed for modified atmosphere packaging, thanks to the airtight sealing of packages obtained through the box motion sealing system.

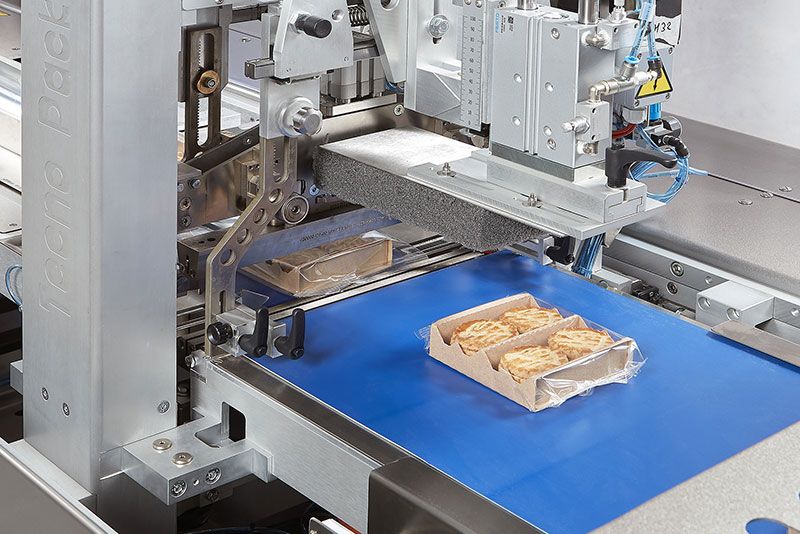

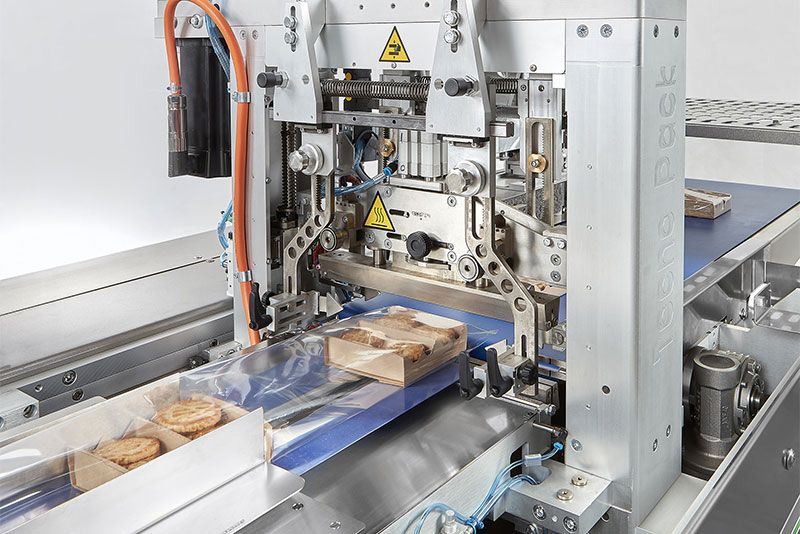

The combined use of motors and linear actuators in the managing of the transversal sealing unit allows obtaining packages with an aesthetically pleasing design, good-quality side gussets and high level performances.

The cantilevered frame and easy access reduce to a minimum the need for maintenance and cleaning interventions.

    Performances:
    up to 100 ppm

    Product size
  • Width: max 350 mm
  • Height: max 180 mm

    Reel size
  • Max 520 mm
  • Outside Ø: max 350 mm
  • Inside Ø: 70 ÷ 76 mm

    Packaging materials
  • Heat-sealable

    Machine weight (net)
  • 1300 Kg abt.

    Machine size
  • Lenght: 5400 mm (1500 mm loading area)
  • Width: 1320 mm
  • Height: 1750 mm

  • Automatic splicer
  • Photocell for printing registration
  • Web width 760/920 mm
  • Modified atmosphere
  • Coder
  • Powered feed roll
  • Gusseting devices
  • Pack deflating devices
  • 2nd Sealing head
  • No product / no bag
  • Out of position
  • no cut
  • Colour "Touch-screen"
  • Easy opening package;
  • Outfeed packs control
  • Outfeed conveyor extension
  • Stainless steel version

  • Motion control with PLC integrated
  • "Touch-screen" operator interface to vary machine parameters
  • Working programmes memorization
  • Machine diagnostic
  • Power: 8 Kw

    Compressed air: 6 bar dry and filtered air

    Compressed air consumption
  • 50 NL/cycle
