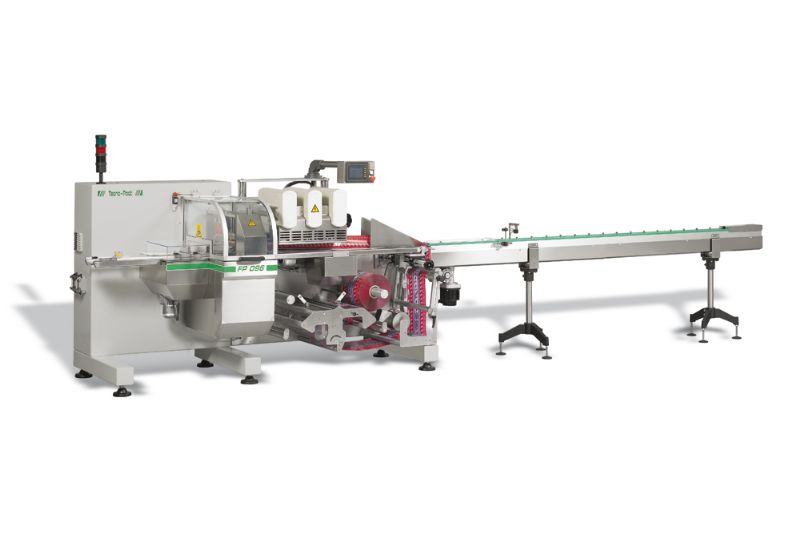

Multi Axis Horizontal Wrapper FP 096

Multi Axis Horizontal Wrapper FP 096

Description

The FP 096 with reel from the bottom is used in the packaging of fragile, irregular or heavy products which need to be "carried" by the packaging material.

The electronic management of the functions of the machine makes its use easy, while the cantilevered frame and the technical solutions adopted in the designing reduce to a minimum the cleaning and maintenance interventions

     Performances:
    up to 220 ppm
    Product size
  • Width: max. 200 mm
  • Height: max. 120 mm

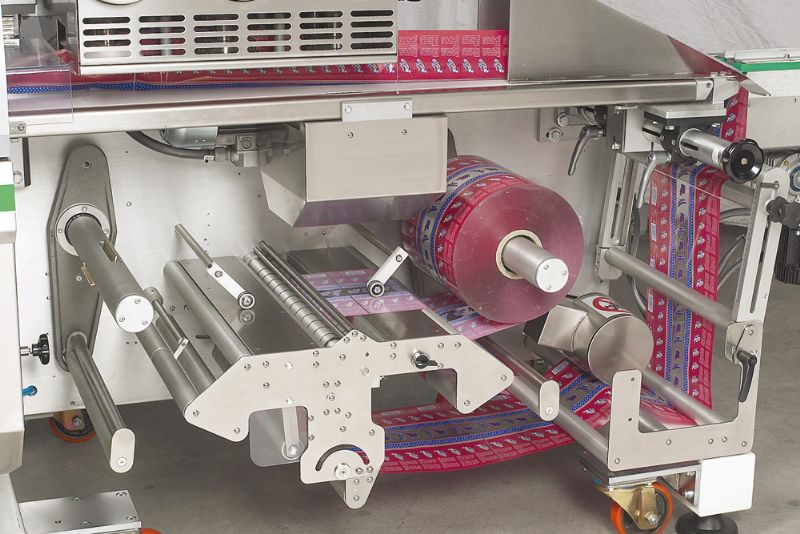

    Reel size
  • Max 500 mm
  • Outside Ø: max 350 mm
  • Inside Ø: 70 ÷ 76 mm
    Packaging materials
  • Heat-sealable
  • Cold-sealable
    Machine weight (net)
  • 1100 Kg abt.

  • Automatic splicer
  • Photocell for printing registration
  • Coder
  • Powered feed roll
  • Web width 740 mm

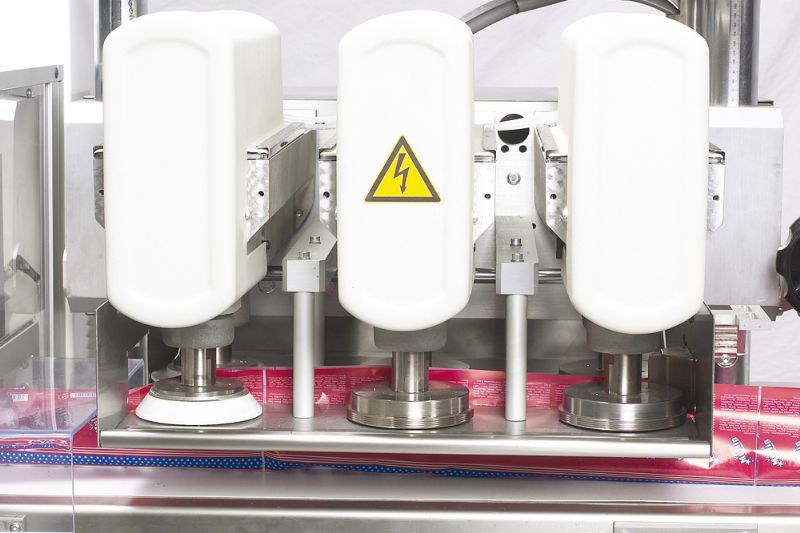

  • "Long Dwell" sealing head
  • Easy opening package;
  • Outfeed packs control
  • Stainless steel version
  • No product-no bag

  • Motion control with PLC integrated

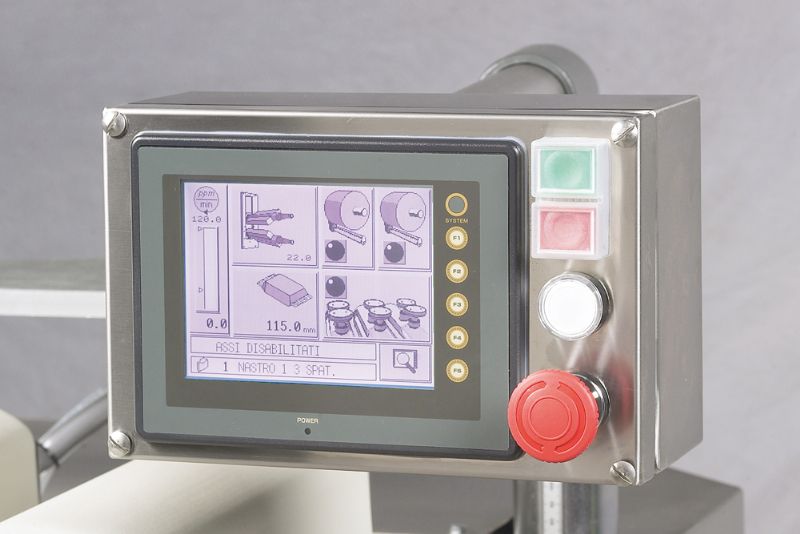

  • "Touch-screen" operator interface to vary machine parameters
  • Working programmes memorization and machine diagnostic
  • Power: 6 Kw

    Compressed air: 6 bar dry and filtered air
    Compressed air consumption
  • 20 NL/minute
