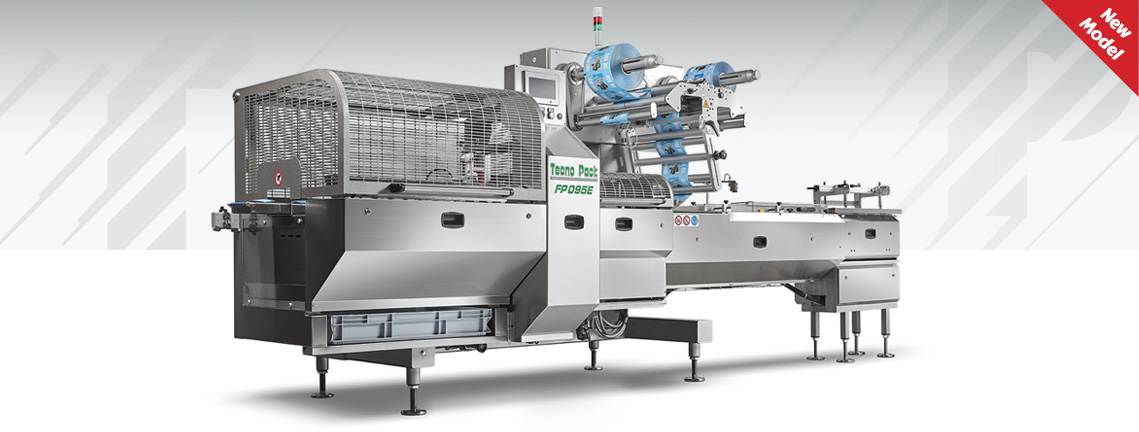

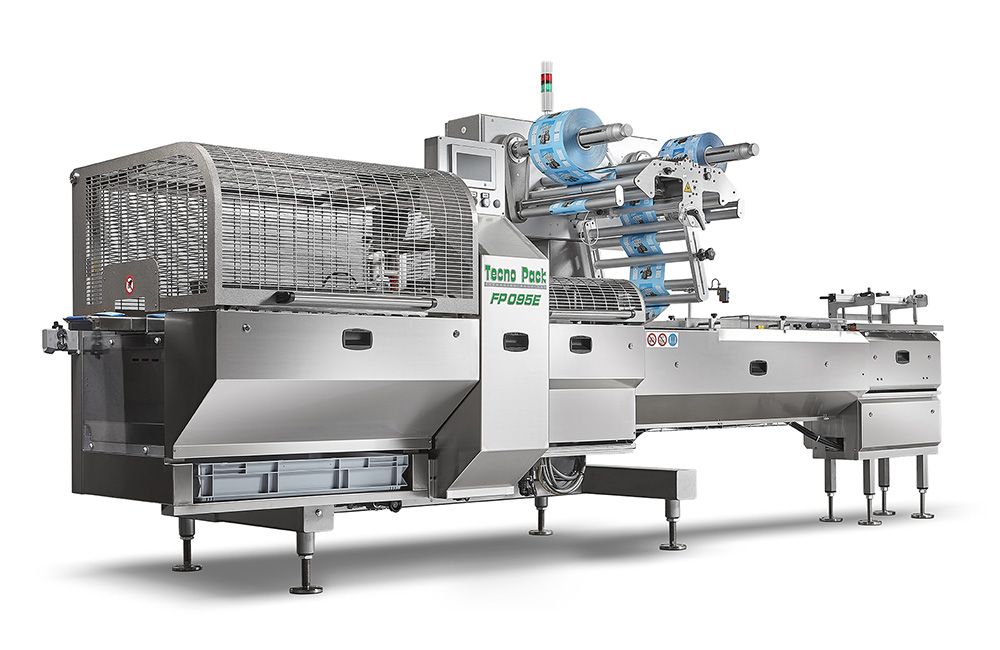

Multi Axis Horizontal Wrapper FP 095 E

Multi Axis Horizontal Wrapper FP 095 E


Designed to be employed in the automatic lines where it differs from its sturdiness, noiselessness and reliability; it finds further application in the standard use, with manual feeding, thanks to its versatility and easy use.

The cantilevered frame and other solutions aimed solving issues linked to the ergonomic and sanitization aspects, allow the use of the FP 095 E also in advanced applications.

    up to 350 ppm
    Product size
  • Width: max. 200 mm
  • Height: max. 120 mm
    Reel size
  • Max 500 mm
  • Outside Ø: max 350 mm
  • Inside Ø: 70 ÷ 76 mm
    Packaging materials
  • Heat-sealable
  • Cold-sealable
    Machine weight (net)
  • 1100 Kg abt.

  • Automatic splicer
  • Photocell for printing registration
  • Coder
  • Powered feed roll
  • Web width 740 mm
  • "Long Dwell" sealing head
  • Easy opening package;
  • Outfeed packs control
  • Stainless steel version
  • No product-no bag

  • Motion control with PLC integrated
  • "Touch-screen" operator interface to vary machine parameters, working programmes memorization and machine diagnostic
  • Power: 6 Kw

  • Compressed air: 6 bar dry and filtered air
    Compressed air consumption
  • 20 NL/minute
