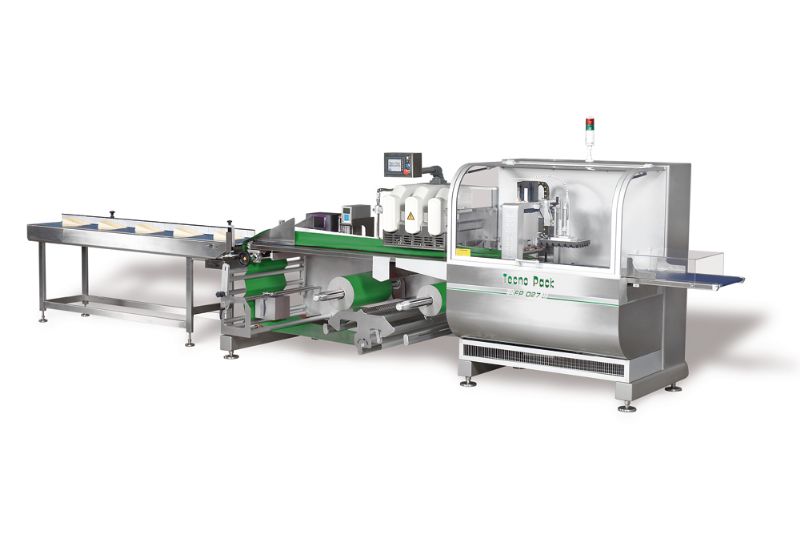

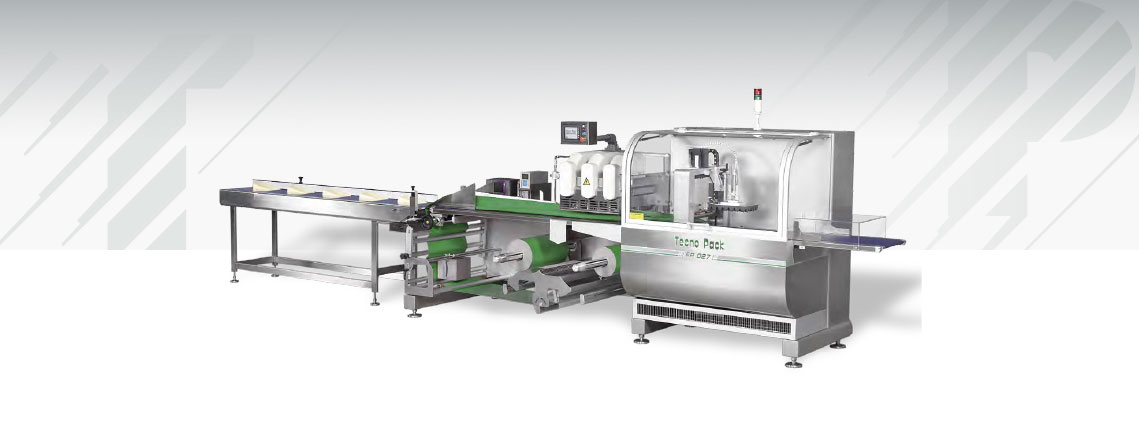

Multi Axis Horizontal Wrapper FP 027

Multi Axis Horizontal Wrapper FP 027

Description

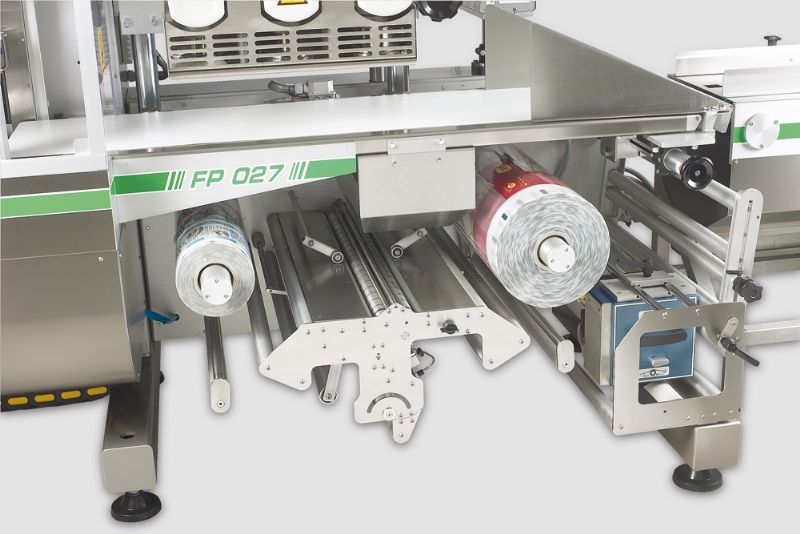

Electronic machine with bottom-mounted reel can be used for packaging fragile, irregular or heavy products, which need to be "carried" by the wrapping material.

This model has been especially designed for modified atmosphere packaging, thanks to the airtight sealing of packages obtained through the box motion sealing system.

The combined use of motors and linear actuators in the managing of the transversal sealing unit allows obtaining packages with an aesthetically pleasing design and high level performances.

The cantilevered frame and easy access reduce to a minimum the need for maintenance and cleaning interventions.

  • Performances: up to 100 ppm.
  • Product size: width max 350 mm, height: max 180 mm.
  • Reel size: max 520 mm, outside diameter max 350 mm, inside diameter 70 ÷ 76 mm.
  • Packaging materials.
  • Heat-sealable.
    Machine weight (net):
  • 1300 Kg abt.
    Machine size:
  • Lenght: 5400 mm (1500 mm loading area).
  • Width: 1320 mm.
  • Height: 1750 mm.

  • Automatic splicer.
  • Photocell for printing registration.
  • Web width 760/920 mm.
  • Modifed atmosphere.
  • Coder.
  • Powered feed roll.
  • Gusseting devices.
  • Pack defating devices.
  • 2nd Sealing head.
  • No product / no bag.
  • Out of position
  • no cut.
  • Colour “Touch-screen”.
  • Easy opening package.
  • Outfeed packs control.
  • Outfeed conveyor extension.
  • Stainless steel version.

  • Motion control with PLC integrated.
  • “Touch-screen” operator interface to vary machine parameters.
  • Working programmes memorization.
  • Machine diagnostic.
  • Power: 8 Kw.

  • Compressed air: 6 bar dry and fltered air.
    Compressed air consumption:
  • 50 NL/cycle.
