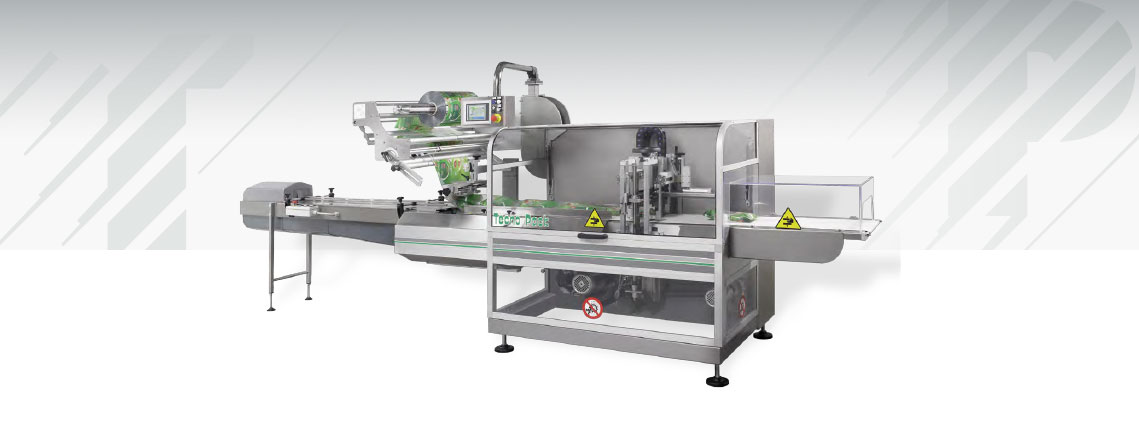

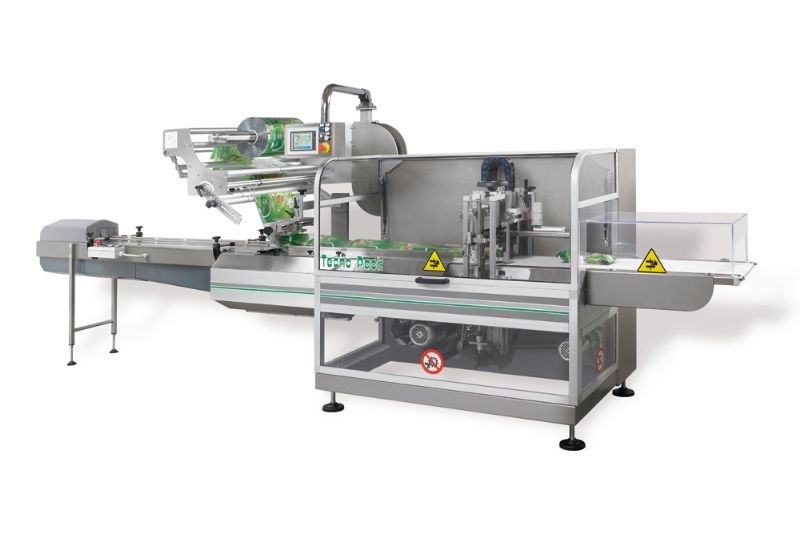

Multi Axis Horizontal Wrapper FP 025

Multi Axis Horizontal Wrapper FP 025

Description

Electronic continuous box motion Horizontal Wrapping Machine.

Specific machine for modifed atmosphere packaging thanks to the tight packs granted by this sealing system. It is the most suitable flow-wrapper when aesthetically good-looking packages with high quality side gussets and thick wrapping materials are required.

Its cantilevered frame and easy access for cleaning and maintenance, keep the vast margin of the highest hygienical standards and industrial production aspects.

    Performances:
    up to 50 ppm.
    Product size:
  • Width: max 350 mm.
  • Height: max 180 mm.
    Reel size:
  • Standard web: 520mm (up to 920mm as option).
  • Outside Ø: max 350 mm.
  • Inside Ø: 70 ÷ 76 mm.
    Packaging materials:
  • Heat-sealable.
    Machine weight (net):
  • 1.100 Kg abt.
    Machine size:
  • FP025EVO: lenght 5.400 mm (1.500 mm loading area), width 1.320 mm, height 1.750 mm.
  • FP025EVO BB: lenght 5.960 mm (1.500 mm carico utile), width 1.350 mm, height 1.610 mm.

  • Automatic splicer.
  • Photocell for printing registration.
  • Modifed atmosphere.
  • Coder.
  • Powered feed roll.
  • Gusseting devices.
  • Pack defating devices.
  • No product / no bag.
  • Out of position
  • no cut.
  • Stop of jaws closing for out of phase product.
  • Easy opening package.
  • Outfeed packs control.
  • Outfeed conveyor extension.
  • Stainless steel version.

  • Motion control with integrated PLC.

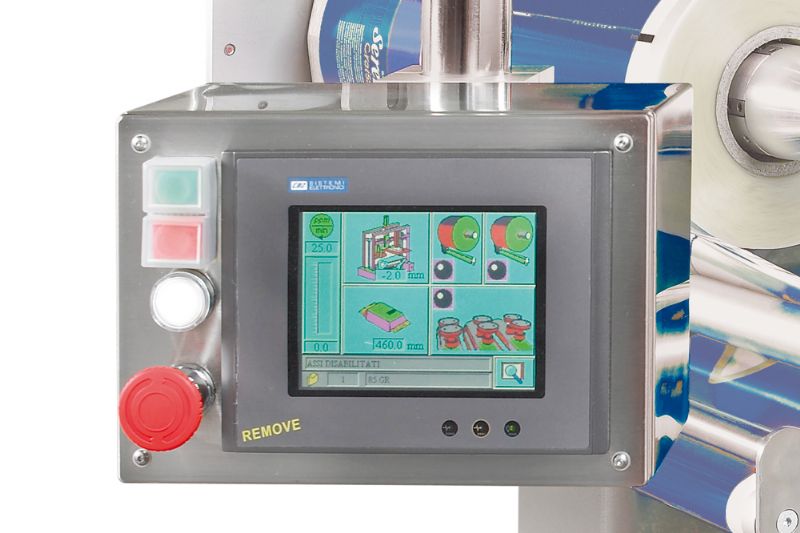

  • “Touch-screen” operator interface to vary machine parameters.
  • Working programmes memorization.
  • Machine diagnostic.
  • Power: 6 Kw.
