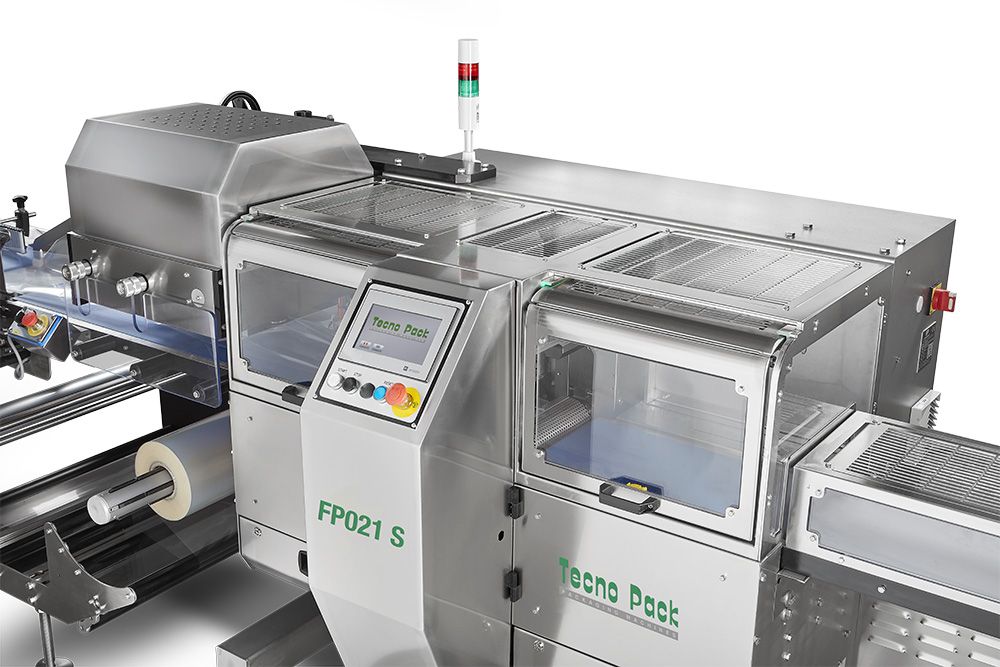

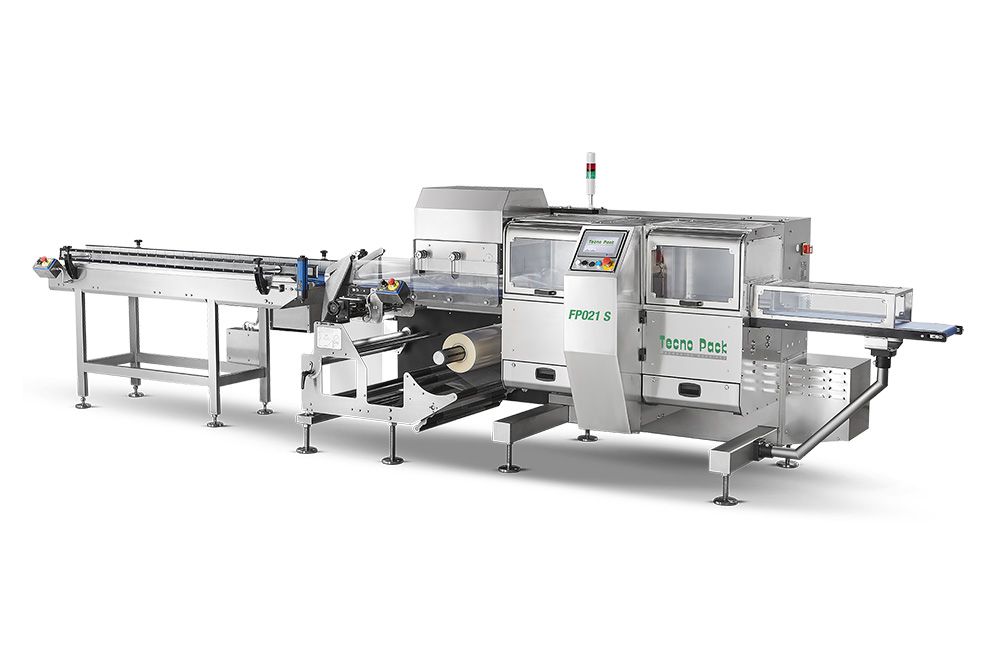

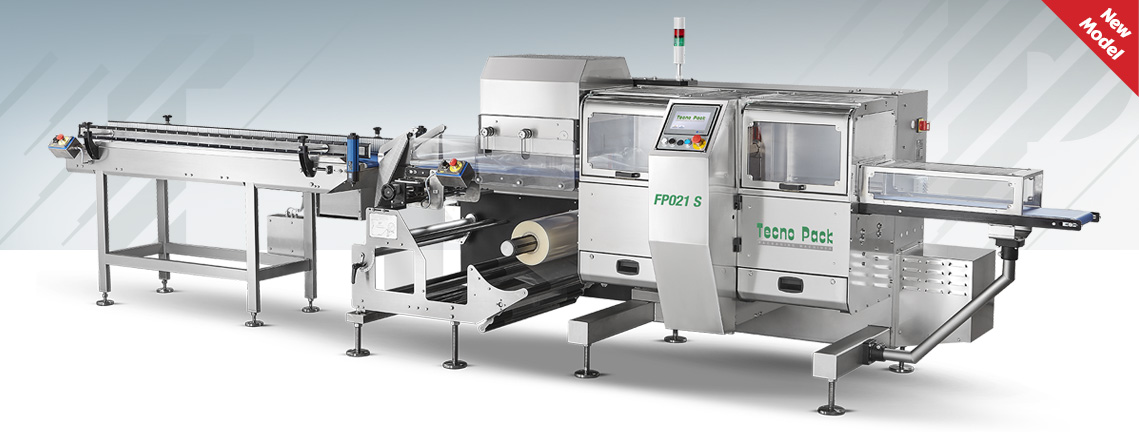

Horizontal wrapper FP 021 S

Horizontal wrapper FP 021 S

Description

FP 021 S is the result of our machines’ evolution and of many experience’s years in the field of horizontal products’ packaging. Electronic Horizontal Pillow Pack Wrapper, versatile and reliable, very fexible in the format-change, suitable for food and non food products, both for single-dose and for multiple packages. Cantilever frame and easy accessibility, together with sanitation (sanifcation) principles, easy maintenance and safety, it has been constructed for, allows this wrapper to distinguish itself.



  • Production speed: Up to 150 ppm.
  • Product dimensions: width: 10÷250 mm, height: 1÷120 mm, length: 60÷600 mm.
  • Reel dimensions: reel width 520/720/920 mm, outside diameter: 350 mm, core diameter: 68÷75 mm.
  • Packaging materials: heat-sealable, coated, cold-sealable, polyethylene.
  • Machine dimensions: length: 4.860 mm, width: 1.190 mm, height: 1.500 mm, machine weight: 650 Kg.

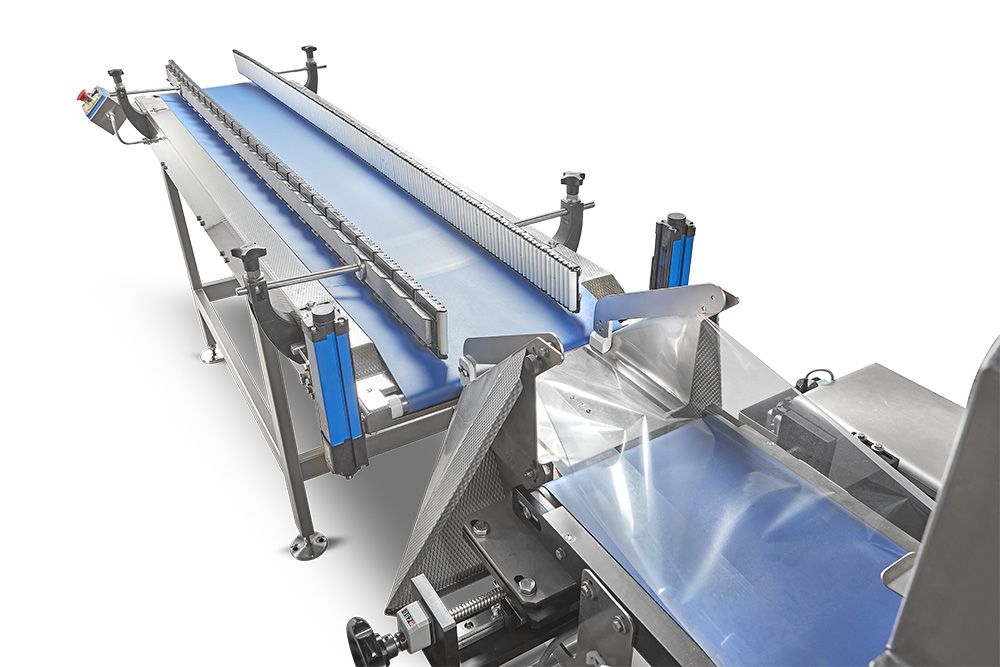

  • Roller conveyor through the up jaw.
  • Printing unit for expiry date.
  • Photo electric cell for print register.
  • Casters under the machine.
  • Gear shift for short/long pitch.

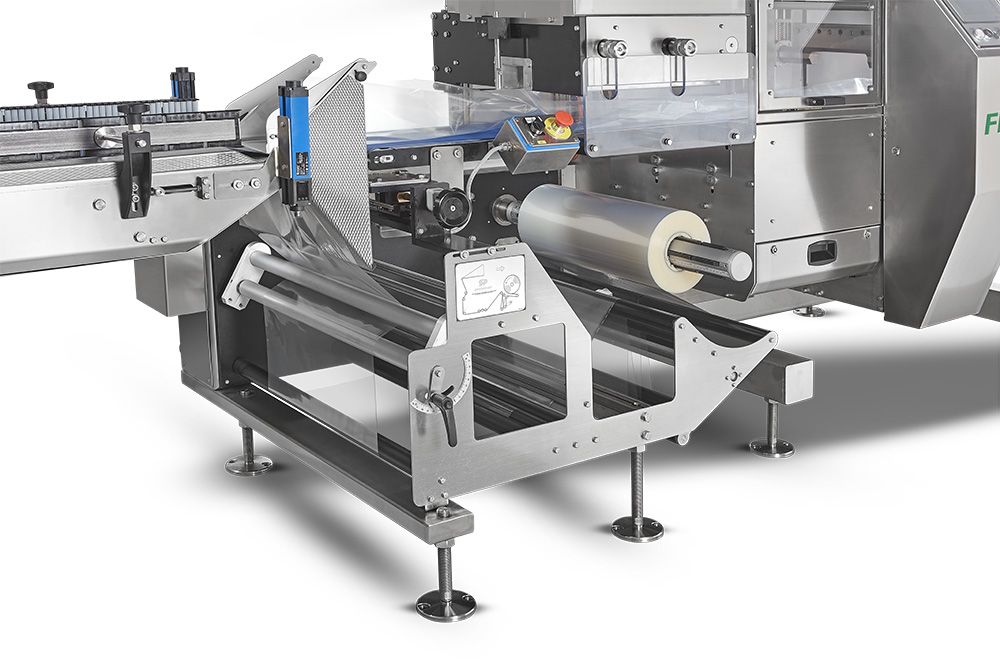

  • Double reel holder.
  • Polythene version.
  • Infeed extension.
  • Zig-zag knives.
  • Euroslot punch.
  • No product no bag.
  • Gussetting device.

  • Motion control with PLC.
  • Interface through 5,7” touch screen.
  • Working programs memorization.
  • Machine diagnostic.
  • Temperature control through touch screen.
  • Power 3,5 KW.

  • Compressed air 7 bar dry and fltered air.
