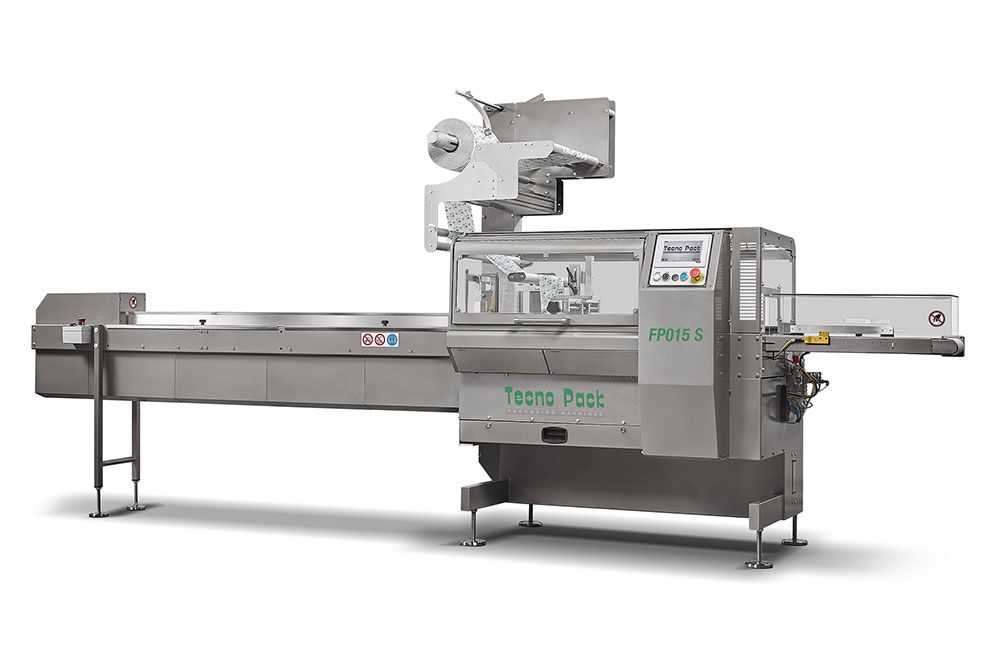

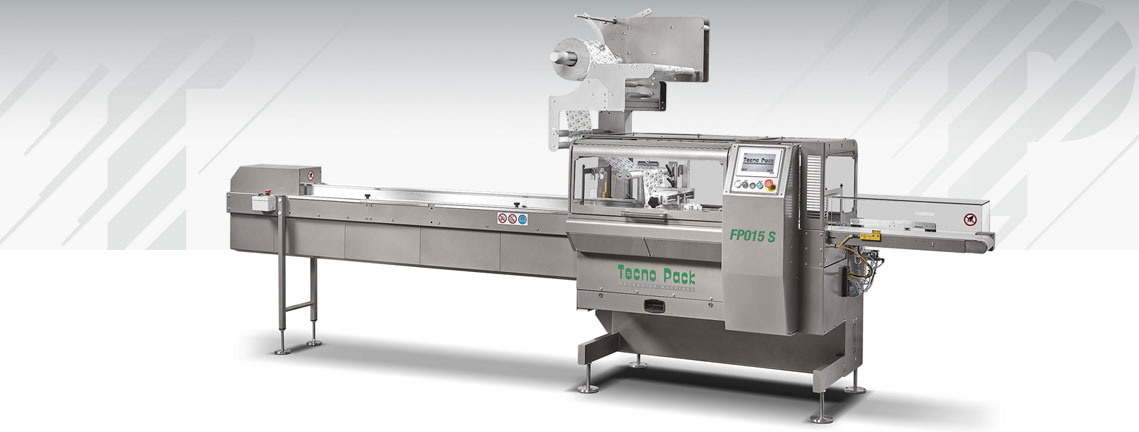

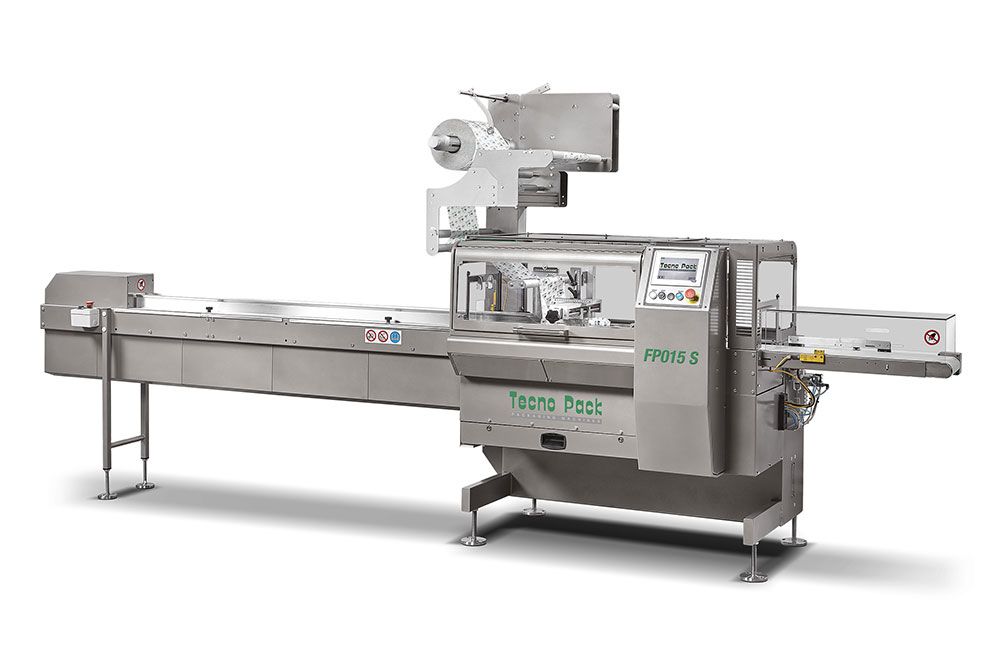

Horizontal wrapper FP 015 S

Horizontal wrapper FP 015 S


FP 015 S is the result of our machines evolution and of many experience’s years in the field of horizontal products’ packaging Electronic Horizontal Pillow Pack Wrapper versatile and reliable, very flexible in the format-change, suitable for food and non food products, both for single-dose and for multiple packages.

Cantilever frame and easy accessibility, together with sanitation (sanification) principles, easy maintenance and safety, it has been constructed for, allows this wrapper to distinguish itself.

  • Cantilever frame.
  • Longitudinal sealing unit with three pairs of rollers.
  • Capacity: up to 120 ppm.
  • Product dimensions: width: 20/200 mm height: 1/100 mm • length: 50/600 mm.
  • Reel dimensions: reel width max 520 mm, outside diameter: 350 mm, core diameter: 68÷75 mm.
  • Packaging materials: heat-sealable, complex films, cold-sealable, polyethylene.
  • Machine dimensions: length: 3.200 mm, width: 890 mm, height: 1.800 mm, weight: 550 Kg.

  • Photo electric cell for print register.
  • Printing unit for expiry date.
  • Double reel holder.
  • Infeed extension.
  • Inox version.
  • Casters under the machine.
  • Gear shift for short/long pitch.
  • Zig-zag knives.
  • Euroslot punch.
  • No product no bag.

  • Motion control with PLC.
  • Interface with 5.7” LCD panel with working programs memorization.
  • Machine diagnostic.
  • Temperature control through touch screen.
  • Power 3 KW.

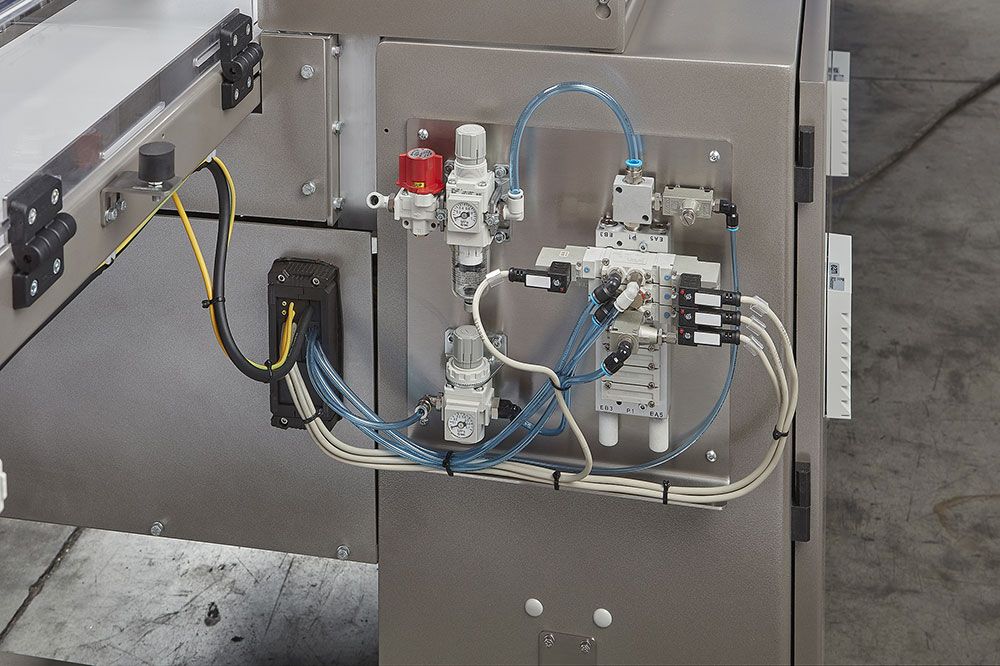

  • Compressed air 7 bar dry and filtered air.
  • Air consumption 20 Nl/min.
