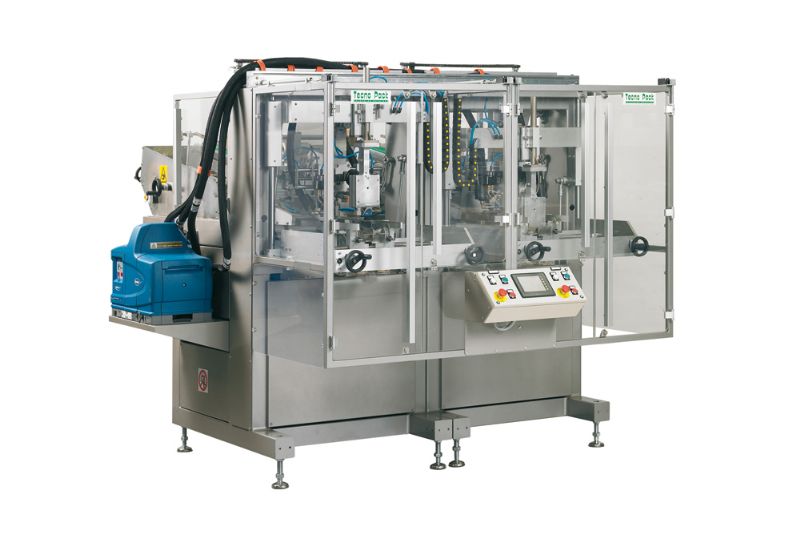

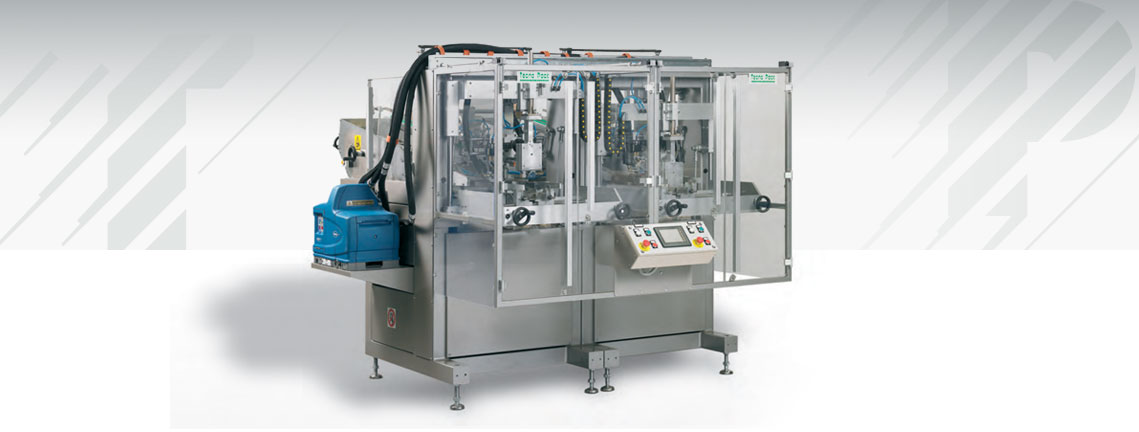

Automatic Mechanic Forming Machine FC 560-660 D

Automatic Mechanic Forming Machine FC 560-660 D

Description

Machine suitable to form trays and boxes starting from cardboard by means of hot melt sealing or with joint made out with the following technical characteristics:

- Compact overall dimensions
- Frame in painted steel and aluminium "anticorodal"
- Completely mechanical operation
- Maintenance reduced to a minimum
- Easy access

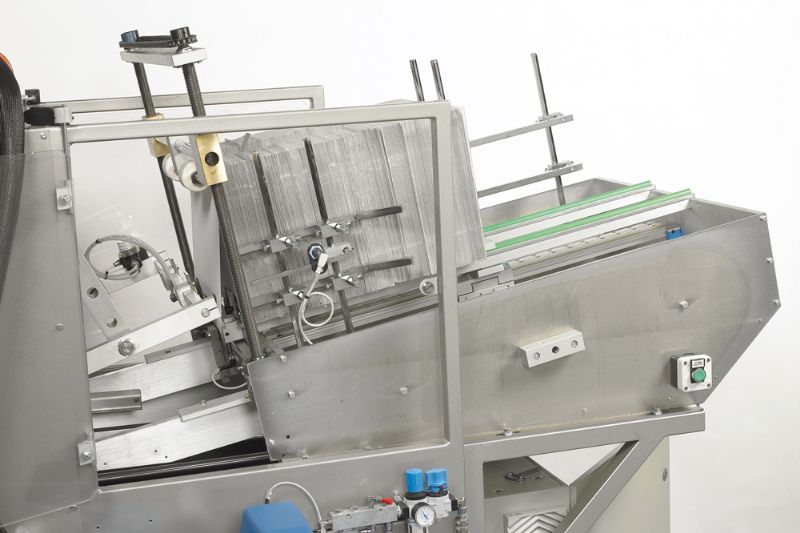

    Cardboards store:
  • Adjustment through a handwheel with position indicator
  • Automatic compacting system

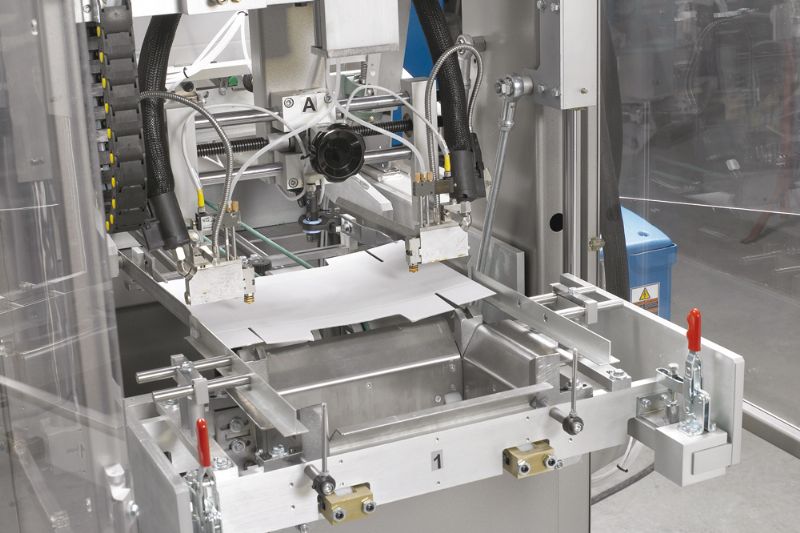

    Cardoboards denester:
  • Picking up arm with suckers
  • Suction system by "venturi" with filter

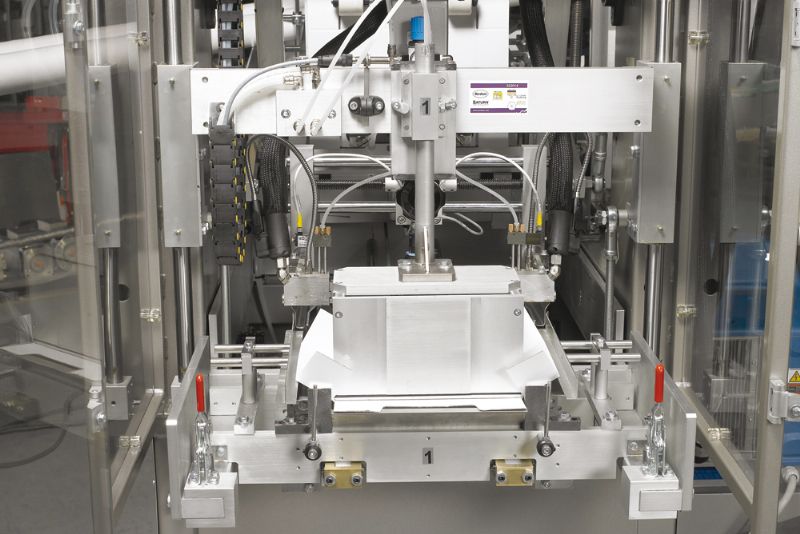

    Forming group:
  • Fast mould change
  • Power limitation on the forming mould with alarm and automatic unlocking
  • Adjustable sprayers through handwheel with position indicator

  • Performances: until 55 cycles/1' with 1 forming head; until 110 cycles/1' with 2 foming heads
  • Cardboards store: lenght 600 mm abt. (capacity 1.100 cardboards abt.)
  • Air consumption: 1,5 ÷ 3 Nl/cycle depending on the models
  • Net weight: 400 kg: (1 forming head) 700 kg: (2 forming heads)

  • Controlled by PLC

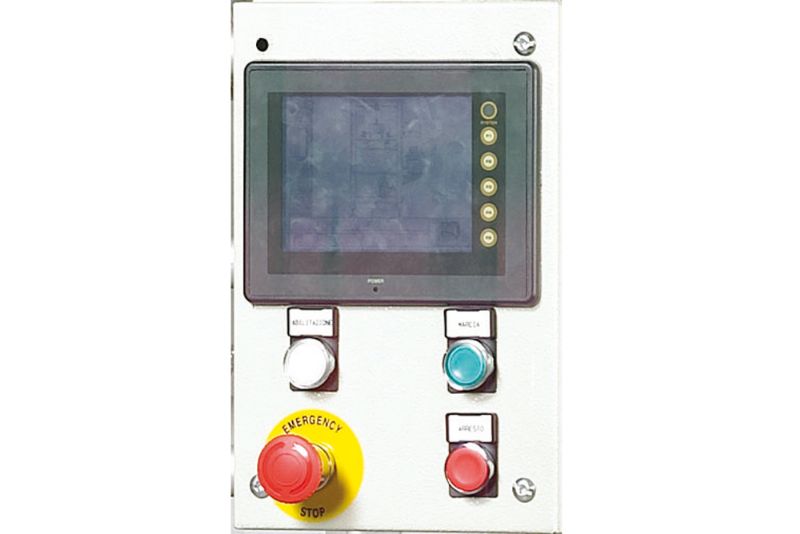

  • Operator terminal: to memorize data and parameters variation
  • Speed variation: by inverter
  • Electric installation IE execution and safe guards: CE regulations
  • Power: 6 ÷ 8 Kw (with hot-melt); ~ 3 Kw (with joint)
